THE RESARO TWO-DUCT
SYSTEM:
FOUNDATIONS PLACED DIRECTLY ON THE GROUND.
Eight semi-detached houses in Bollstanas.

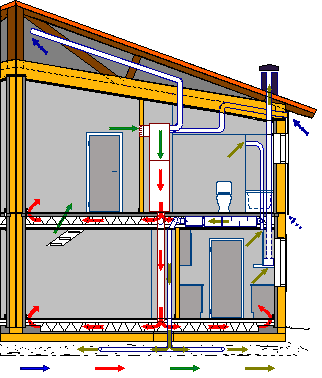

The section shows the principles for the Heating and Ventilation
system.
|
|
THE RESARO
TWO-DUCT SYSTEM:
A NEW
GLOBAL SOLUTION:
DYNAMIC FRESH AIR INTAKE, FOR TWO-STOREY HOUSES.
"SOFT" HEATING ON EVERY FLOOR LEVEL IN THE HOUSE.
ENERGY RECOVERY WITHOUT A HEAT RECOVERY UNIT
THE
RESARO ELEMENT
GIVES YOU THE OPPORTUNITY TO
DESIGN YOUR OWN LIVING ENVIRONMENT
THE FLEXIBLE CONSTRUCTION SYSTEM PROVIDE THE CHANCE TO USE YOUR
OWN IMAGINATION.
NO
SUPPORTING INNER WALLS TO TAKE INTO CONSIDERATION |
Bigger picture?
Press here
CLEAN INDOOR AIR AND
LOW ENERGY CONSUMPTION
Fresh outdoor air is transferred in through the roof heat insulation,
which acts as a filter as well as a heat exchanger.
With this method, the air is cleaned from pollen and particles
at the same time as it is heated by the ascending heat, which
otherwise would pass out through the roof.
This is called "Dynamic air intake," and saves energy.
The preheated outdoor air is mixed with the circulating indoor
air and is cleaned once more by two filters.
With this procedure we obtain very clean indoor air. |
Only a small input of energy is needed to keep the house warm.
The exhaust air is transferred down into the ground below the
house and forms a heated zone, which contributes to lowering
the energy consumption.
SOFT UNDER FLOOR HEATING
The heated circulating supply air, together with the fresh air,
is channeled into the suspended structural floors and enters
the rooms behind the skirting boards along each outer wall. This
technique gives "soft" warm floors.
A FUTURE WITHOUT CLEANING
Warmth and comfort without radiators, which have a tendency to
gather dust. |
Do you want to know more
about "Dynamic fresh air
intake"?
(Short information in text appendix)
The RESARO system: A general solution
which
gives the constructor lower costs
The whole cost governs the profitability
for a building project. This is not only a comparison between
different types of design. For example, foundations placed directly
on the ground containing heating coils, or a self-suspended system
of joists and beams.
One must also include the costs for installation, different construction
processes and the costs associated with the elements and components
being used in the building.
This approach helps to give the customer
lower
housing costs.
The total cost, where costs for
heating, maintenance and also insurance are included, are of
vital importance for the owner or resident, and are not only
a comparison between the cost prices of houses.
EXHAUST VENTILATION AIR Ventilation: Plan of Top floor
BUILDING ACTIVITY IN PROGRESS:
Eight
semi-detached houses
in Bollstanas, Upplands Vasby, Stockholm.
